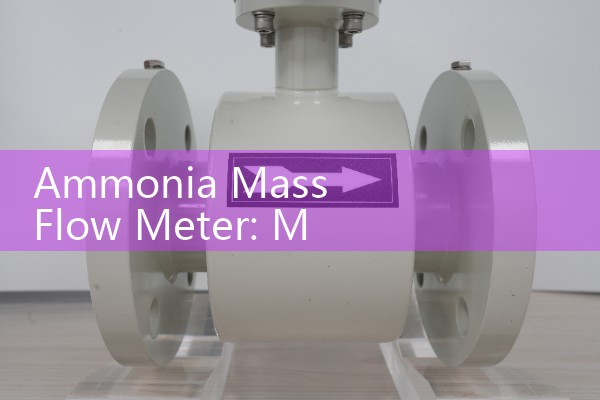

Ammonia Mass Flow Meter: Material Selection Guide
Quick Answer: Choosing the right materials for an ammonia mass flow meter prevents leaks, corrosion, and measurement drift. For most anhydrous ammonia applications, 316L stainless steel wetted parts and PTFE seals work well. For ammonia with moisture or high temperatures, select Hastelloy C-22 measuring tubes and Kalrez O-rings. Silver Automation Instruments supplies Coriolis meters with custom material options for your process conditions.
Why Material Compatibility Is Critical for Ammonia
Ammonia attacks certain metals. Copper, brass, and zinc alloys fail quickly. Most engineers skip checking trace moisture. We have seen repeat failures at a fertilizer plant in Vietnam due to a brass fitting in the flow path. Choosing correct materials avoids downtime and safety incidents. Anhydrous ammonia is a base, and when water is present, it forms ammonium hydroxide. That compound is even more corrosive to copper and its alloys. Stainless steel resists this well. But if the ammonia contains high levels of contaminants, upgrading to Hastelloy can give longer service life. In practice, a small amount of water in ammonia vapor can cut the meter life by half if the wrong seals are installed.
Anhydrous vs. Aqueous Ammonia: Two Different Material Demands
Pure anhydrous ammonia (NH3) is non-corrosive to carbon steel and stainless steel under moderate temperatures. Aqueous ammonia, often called ammonia water, corrodes metals faster. In refrigeration systems, anhydrous ammonia is common. In chemical dosing, aqueous ammonia at 25 percent concentration is typical. For anhydrous liquid ammonia at 20 degrees C and 15 bar, 316L (1.4404) measuring tubes are standard. For ammonia water above 10 percent concentration, we recommend Hastelloy C-276 or C-22. This avoids pitting and stress corrosion cracking. Field experience from a desalination plant in Saudi Arabia showed that 316L lasted only 8 months with slight moisture in ammonia vapor. After switching to Hastelloy, no failure occurred in 3 years.
Metallic Wetted Parts: 316L vs. Hastelloy
For the mass flow meter sensor body and measuring tubes, two primary materials dominate. 316L stainless steel offers good corrosion resistance at a lower cost. It handles anhydrous ammonia up to 50 degrees C without issues. Hastelloy C-22 provides superior resistance to pitting, crevice corrosion, and stress corrosion cracking. For ammonia with moisture, sulfides, or chlorides, Hastelloy is necessary. Silver Automation Instruments fabricates Coriolis meter measuring tubes from seamless 316L or Hastelloy C-22. Tube sizes range from DN15 to DN100. Process connections can be 316L as well. Do not use bronze or Monel for ammonia. Some datasheets list brass, but we strictly avoid it. Here is the thing: even a single brass adapter in the pipeline can destroy the reading and cause a leak.
Seals, Gaskets, and Non-Metallic Components
Elastomer seals in an ammonia mass flow meter must be compatible with ammonia and the operating temperature. Standard NBR (nitrile) degrades when exposed to ammonia. PTFE (Teflon) is chemically inert and works well for both anhydrous and aqueous ammonia. For high-temperature ammonia gas above 100 degrees C, we use Kalrez (FFKM) O-rings. Graphite gaskets are not recommended because ammonia can react with binders. In practice, we install PTFE encapsulated O-rings in all ammonia meters unless the customer specifies a different material. One common mistake is using standard Viton (FKM). While FKM has g
Real-World Case: Ammonia Mass Flow Meter in a Urea Plant
Last year, a fertilizer manufacturer in Indonesia contacted us. They needed to measure liquid ammonia feed to a urea reactor. Pressure 20 bar, temperature 40 degrees C, pipe DN50. The plant originally used a turbine flow meter with brass internals. It failed every 3 months. We supplied a Coriolis mass flow meter with Hastelloy C-22 measuring tubes, PTFE liner, and Kalrez seals. Accuracy was 0.2 percent of rate. The meter has run without maintenance for 18 months. This kind of direct feedback drives our material selection guide. Send us your process pressure, temperature, pipe size, and flow range, and we will propose the correct meter materials for your ammonia application.
How to Select the Right Instrument for Your System
Begin with an exact description of your ammonia stream. Is it anhydrous or aqueous? What is the temperature range? The presence of water, air, or sulfides changes the game. For typical anhydrous ammonia in a cold storage plant, a standard 316L meter with PTFE seals works well. For ammonia in chemical processes with moisture, choose Hastelloy. Pipe size (DN) and flow range (kg/h) determine the meter size. Our team at Silver Automation Instruments will review your parameters and recommend a model from our AMF series. We support 4-20 mA HART, Modbus, and pulse outputs. ATEX and IECEx certifications are available for Zone 1 or Zone 2 hazardous areas.
Frequently Asked Questions on Ammonia Flow Meter Materials
Can I use a carbon steel flow meter for anhydrous ammonia?
Carbon steel is acceptable for anhydrous ammonia in low-temperature, dry conditions. But for long-term reliability and to avoid rust contamination, we recommend 316L stainless steel. Carbon steel may develop internal rust when offline, causing measurement errors.
Why does ammonia corrode copper and brass?
Ammonia forms a complex with copper ions, dissolving the metal. This is why brass or bronze components fail quickly. Never use copper-containing alloys in ammonia service.
Does an ammonia mass flow meter need special wetted parts if the ammonia is vapor?
Ammonia vapor can still contain moisture, especially if the system experiences temperature changes. Use the same material guidelines. For dry ammonia vapor at moderate temperatures, 316L is adequate. For wet vapor or high temperatures, choose Hastelloy and high-temperature seals.
What is the price difference between 316L and Hastelloy ammonia flow meters?
A Hastelloy Coriolis meter typically costs 30 to 50 percent more than the 316L version for the same size. The exact price depends on the pipe size and certification requirements. Request a quote with your process details to get a firm price.
Can I use a magnetic flow meter for ammonia?
Magnetic flow meters require a conductive liquid. Anhydrous liquid ammonia has very low conductivity, so a magmeter will not work. Aqueous ammonia solutions with enough conductivity can be measured, but material selection for electrodes and lining is critical. We recommend a Coriolis mass flow meter as the most reliable choice for all ammonia types.
Ready to specify an ammonia mass flow meter? Send us your pressure (bar), temperature (deg C), pipe size (DN), and flow range (kg/h). Our engineers will reply with a material recommendation and price. See our ammonia Coriolis mass flow meter options at flow-meter.com.au.
