Flanged Inline Flow Meter Installation for Permanent Process Lines
Quick Answer: Correct installation of a flanged inline flow meter determines measurement repeatability, long term meter health, and whether your custody transfer audit passes on the first try. For permanent lines in chemical processing, water network metering, or oil and gas transfer, you need to lock in the straight run, eliminate pipe stress, center the gaskets, and verify the ground. A rushed installation often adds a 1 to 3 percent measurement offset that nobody notices until the monthly mass balance does not close.
Pre-Installation Checks Before You Mount the Meter
Before the lifting gear is rigged, check the paperwork against the pipe spool. Confirm the flange pressure class matches the process design. In a wastewater plant near Bangkok, we saw a PN10 meter bolted into a PN16 line because the purchase order mixed up the flange drill pattern. That mistake is easy to make when the pipe schedule is not cross checked. Verify the meter body material and liner with the process fluid data sheet. 316L stainless steel electrodes in an electromagnetic flowmeter work well for drinking water, but in raw seawater with 50,000 µS/cm conductivity, you also need Hastelloy grounding rings and a lined flange face to prevent crevice corrosion after 18 months of continuous flow.
Straight Pipe Run and Flow Conditioning
Most flange type inline meters need an undisturbed velocity profile. Silver Instruments recommends a minimum of 5D upstream and 2D downstream for its full bore electromagnetic flowmeters when installed after a 90 degree single elbow. Vortex flowmeters ask for more. A vortex meter placed only 7D downstream of a control valve will under read by 4 to 8 percent because the vane shedder sees a distorted signal. One palm oil refinery in Indonesia cut the error in half by moving the meter to a spool piece with 18D of straight run and adding a tube bundle straightener. Before welding the flanges, sketch the pipe isometric and mark the required clearance. In tight pump skids, our application engineers can run a CFD snapshot to see if a short lay length Coriolis meter can survive at 3D without a flow conditioner.
Gasket Alignment and Centering
Here is the thing. A gasket protruding 2 mm into the pipe bore changes the velocity right at the electrode plane of a magmeter. The meter will read 1.5 percent high because the local velocity increases, but the totalizer counts phantom volume. For orifice plate carriers and turbine meters, the inner diameter mismatch creates a permanent bias. Always use gaskets with an inner diameter equal to or slightly larger than the meter bore. Do not use spiral wound gaskets with inner guide rings that neck down the flow path unless the flow element calculation accounts for it. Center the gasket with a pilot ring or a plastic centering tool. Tighten flange bolts in a cross pattern with a calibrated torque wrench. A lopsided bolt load twists the meter body. On a DN50 Coriolis flowmeter we checked in a Mexican tequila distillery, uneven bolt torque caused a zero shift of 3.2 kg/h, which vanished after the bolts were retorqued to 60 Nm in three passes.
Eliminate Pipe Stress and Thermal Load
A permanent pipe rack moves. A 20 metre carbon steel pipe heated from 30 degrees Celsius to 120 degrees Celsius grows by roughly 21 mm. If you lock a flanged flowmeter between two anchor points without any expansion provision, the axial force can exceed 10 kN. We measured 0.4 mm of flange face deflection on a DN80 Coriolis meter at a Brazilian ethanol depot. The meter zero drifted by 0.8 g/s and the density reading shifted from 795 kg/m³ to 801 kg/m³. Solve this by installing pipe supports within 1 to 2 pipe diameters of the meter flanges, and add expansion loops or bellows if the process cycles above 80 degrees Celsius

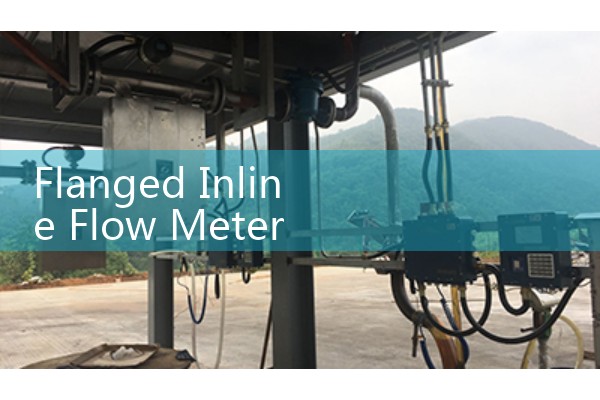

_600x400.jpg)
Electrical Grounding and Signal Wiring for Magmeters
The step most often skipped on a flange connected electromagnetic flowmeter is the dedicated ground. Stray currents from an adjacent VFD motor cable will couple onto the signal electrodes. The 4-20 mA loop jumps from 12.1 mA to 18.5 mA with no real flow. On a 24 V DC loop, that looks like a process upset, and the control room operator will override the meter to manual. In desalination plants in Oman, we always specify a ground ring on both flange faces and a separate 16 mm² copper earth cable to a local earth rod, not the clean instrument ground bus. Keep the signal cable at least 300 mm away from any AC power cable. Use the factory supplied double shielded cable with drain wire. Insulation resistance between signal wires and ground should exceed 100 MΩ at 500 V DC before startup.
Commissioning and Wet Verification
Do not open the block valves fast. Vent the air and fill the line slowly while watching the transmitter display. A horizontal Coriolis meter with a half filled tube will alarm for slug flow and freeze the totalizer. A chemical trader in Jebel Ali got a density reading of 1.12 g/cm³ for a solvent that should read 0.998 g/cm³. Air pockets were trapped after an eccentric reducer. After a proper vent, the reading stabilized within 0.002 g/cm³. For billing meters, schedule a reference check during the first week of operation. Use a master meter or a weigh tank traceable to NIST or CNAS. Silver Instruments offers an optional factory wet calibration and a third party certification package that includes a 5 point verification and a repeatability report.
Frequently Asked Questions
Q: What is the minimum straight run for a flanged inline flow meter downstream of a 90 degree elbow in a permanent water line?
A: For a full bore electromagnetic flowmeter, 5D upstream and 2D downstream is standard. For a vortex meter, plan 15D upstream and 5D downstream. Always follow the ISO 5167 recommendation and the manufacturer installation manual for your meter type and line size.
Q: Can a flanged Coriolis meter be installed in a vertical pipe without a back pressure valve?
A: Yes, when the flow direction is upward and the meter tube stays fully filled at all times. Do not install it vertically down with free discharge because the tubes will drain and the meter will read zero or produce erratic density. A check valve downstream helps maintain back pressure.
Q: How do I prevent gasket protrusion when matching a schedule 40 pipe to a wafer style flowmeter?
A: Order gaskets with a bore equal to the meter body inner diameter. Before final torque, use a thin plastic feeler gauge to sweep around the joint. If you feel a lip, center the gasket again. Some installations use a centering ring welded to the flange face.
Q: What if my process fluid temperature exceeds the meter upper limit during a periodic steam out?
A: Remove the meter or install a bypass line. Exposing a PTFE lined electromagnetic flowmeter to 150 degree Celsius steam, even for 15 minutes, can cause the liner to crack. We have seen a food grade meter lose its vacuum rating after a single steam clean cycle. Always match the meter temperature class to the CIP or SIP maximum temperature.
Q: Where can I get a quote for a flanged inline flow meter with installation advice?
A: Send us your fluid name, pipe size in DN, operating pressure in bar, temperature in degrees Celsius, and required accuracy. Mention if you need ATEX Zone 1 or IECEx certification. Our team will return a price, a dimensional outline, and a suggested spool piece layout within one working day.
