Heavy Fuel Oil Flow Meter 10 L/min for Low Flow Recirculation Loops
Quick Answer: For heavy fuel oil at 10 L/min in a low flow recirculation loop, select an oval gear flow meter with a heating jacket or a small-bore Coriolis mass flow meter. Oval gear meters handle high viscosity without straight pipe runs, and the heating jacket keeps HFO above the pour point. Silver Automation Instruments supplies both types with 4-20 mA HART output and ATEX zone approvals.
Heavy fuel oil recirculation loops move heated HFO from the day tank to the engine or burner, then bring the unused portion back. The flow rate at the meter is often small, around 10 liters per minute. A reliable reading at this low flow point matters for fuel consumption monitoring, leak detection, and burner efficiency. Many engineers find that conventional turbine meters choke on HFO viscosity above 200 cSt. Here is the thing. You need a meter that does not care if the viscosity changes from 180 cSt to 380 cSt or even 700 cSt when the heater drifts.
Why Oval Gear Meters Fit 10 L/min HFO Recirculation
Oval gear meters are positive displacement. Every pocket of fluid between the oval rotors moves a fixed volume. At 10 L/min on a DN15 pipe, you get a clean pulse train even when the flow dips to 2 or 3 L/min during bypass valve adjustment. Silver Automation Instruments offers the SILVER OG-HF oval gear flow meter with an integral heating jacket. The jacket uses steam trace or electric heating to keep the meter body at 120 °C to 140 °C. No cold spots, no solidifying. Last year a marine service company in Vietnam asked us for a 10 L/min HFO meter for a test bench recirculation loop. Their pipe size was DN15, operating pressure 12 bar, temperature 110 °C, and the HFO grade was RMG 380. We supplied an OG-HF with a PT100 temperature sensor and pulse plus 4-20 mA HART output. They needed ATEX Zone 1 because the test bench was in a hazardous area. The meter has been running for eight months with zero drift.
Coriolis Meters for Heavy Fuel Oil: Another Solid Option

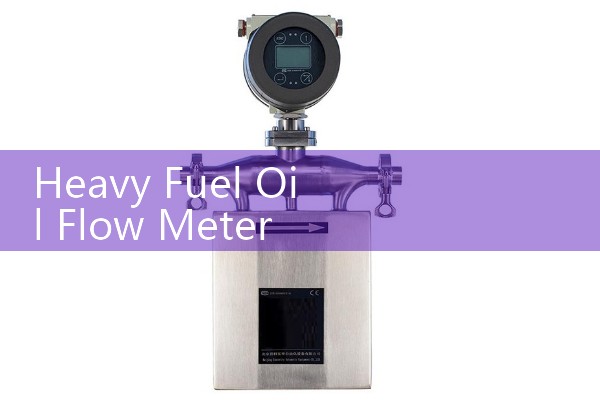

Some sites prefer a Coriolis mass flow meter because it gives direct mass flow (kg/h) and density. At 10 L/min, a small-bore Coriolis sensor like the Silver CM 006 with DN6 or DN10 connection works. The meter handles viscosities up to 2 000 cP without recalibration. Because heavy fuel oil can contain abrasive particles, the CM series uses 316L stainless steel wetted parts as standard. But the price is higher than an oval gear meter. In practice, we see Coriolis chosen when the plant needs mass balance or when the HFO is blended and density data matters. A fuel depot in Saudi Arabia runs three Silver CM 008 meters on HFO recirculation loops at 8 to 15 L/min, with 220 °C preheating. They read mass flow and density in real time and send the data to a supervisory PLC via Modbus RTU.
Critical Details Most Engineers Skip on Low Flow HFO Loops
>
Heavy fuel oil demands a meter that is heated from end to end. Cold piping before or after the meter can create a solid plug. Silver Automation Instruments can supply the flow meter with companion flanges that have heating jackets built in. Another detail is the low flow cutoff. Turbine meters stop registering at around 5 % of maximum range. An oval gear meter or a Coriolis meter registers down to near zero flow. When a recirculation line is almost closed, you still need to know there is a trickle of 0.5 L/min to confirm the pump has not lost prime. Another practical point: do not assume a remote display is optional. On a ship engine room or in a noisy boiler house, the operator cannot read a tiny LCD. We usually offer a separate panel-mount display that repeats the flow rate and total, powered by the 4-20 mA loop. It saves a lot of service calls.
Output Signals and Remote Monitoring for HFO Recirculation
Silver Automation Instruments configures the flow meter output to match your existing control system. Standard choices are 4-20 mA with HART, active pulse (NPN or PNP), and Modbus RTU. For 10 L/min HFO loops on auxiliary engines, pulse output feeding a local batch controller works well. For boiler houses, a 4-20 mA signal wired to the BMS is more common. Optionally we add an ATEX-certified barrier and explosion-proof enclosure for Zone 1 or Zone 2 installations. Because many HFO meters go into marine applications, we also supply type approval certificates from DNV or Bureau Veritas on request.
Frequently Asked Questions
What is the best flow meter for heavy fuel oil at 10 L/min?
Oval gear meters with a heating jacket are the most cost-effective and reliable choice for this low flow range. A small Coriolis meter works well if you need mass flow and density and have a higher budget.
Do I need a heated flow meter for HFO recirculation?
Yes. Heavy fuel oil must stay above 60 °C to 80 °C even in idle recirculation. A meter without heating will clog. Silver Automation Instruments provides meters with electric heat tracing or steam jacket connections.
Can I use a turbine flow meter for low flow HFO?
Turbine meters struggle with high viscosity and low flow. At 10 L/min and 380 cSt, the meter accuracy drops severely. Positive displacement or Coriolis meters are the correct choice.
What pipe size is common for a 10 L/min HFO recirculation loop?
DN15 or DN10 piping is typical. We match the meter connection to your pipe schedule. Flanged or threaded connections are available in 316L stainless steel or carbon steel.
How do I get a price for a heavy fuel oil flow meter?
Send us your operating pressure (bar), temperature (°C), pipe size (DN), flow range (L/min), and viscosity (cSt) if known. We will return a recommended model, datasheet, and quotation within one working day.
